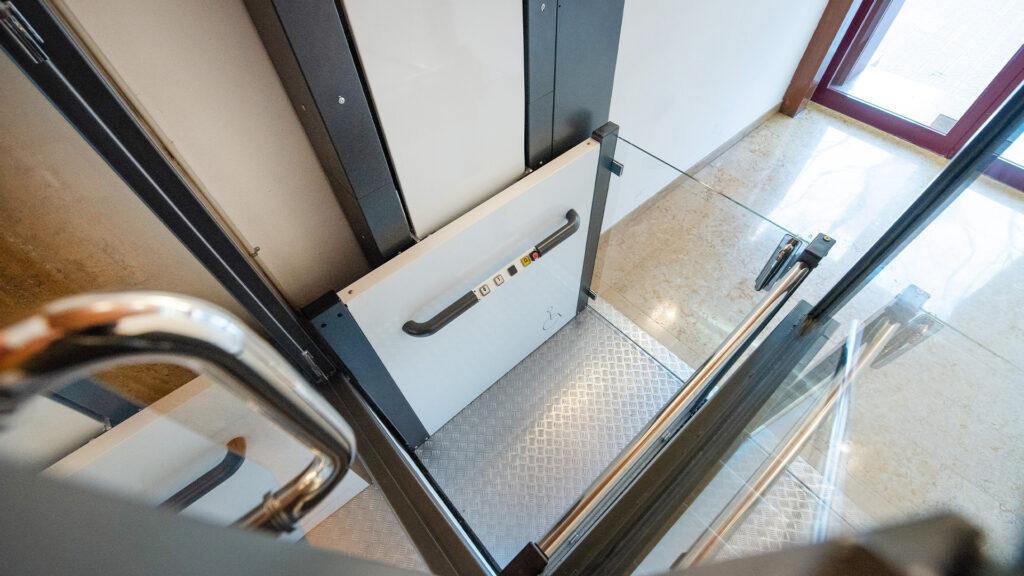

AZ VERTY Black
Aszende Vertical Platforms
The best option to remove obstacles to mobility over longer distances without taking up space on the stairs. They are reliable and robust and are designed for installation either indoors or outdoors thanks to the technical characteristics that guarantee the best performance even in adverse weather conditions.
Features of the AZ VERTY Black
- Mechanism: Hydraulic drive.
- Speed: 0.15 m/s.
- Load: up to 385 kg.
- Travel: Vertical displacement of up to 3 metres of travel. Possible option to extend up to 10 m after consultation.
- Pit: 130 mm. If you don’t have a pit, you have the option to install a ramp.
- Voltage: Single-phase power supply 220 V. Motor power 1.5 kW.
- Safety clearance: Minimum: 2,200 mm.
- Finish: Panoramic cabins and doors.
- Constant pressure lift controls in cabin.
- Optional motorised doors.
- Hydraulic power unit with ascent controlled by variable speed drive and two speeds for descent.
- Integrated cabinet on the side of the column
- Automatic rescue system by UPS.
- Regulations in accordance with the European Machinery Directive 2006/42/EC.
