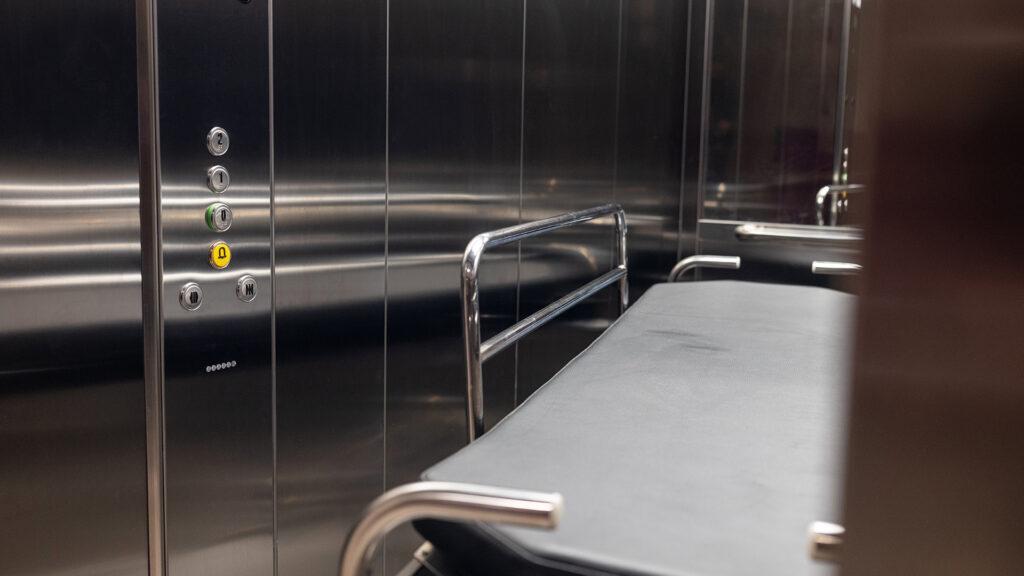

Stretcher lifts

Aszende goods lifts



Stretcher lifts with GEARLESS technology and either gantry or backpack chassis depending on shaft dimensions. The perfect solution for hospitals and homes. Product notable for its strength, comfort and durability.

Features of the stretcher lift

  • Mechanism: GRL (Gearless) backpack or gantry chassis.
  • Speed: From 0.6 m/s to 1.6 m/s.
  • Rated load: 1,000 kg – 1,250 kg.
  • Travel: Up to 55 metres of travel.
  • Pit: Minimum from 1,100 mm to 1,400 mm depending on load and speed. Pit from 800 mm with regulatory exemption.
  • Voltage: 380 V three phase.
  • Boarding: Simple boarding and double boarding at 180º.
  • Minimum safety clearance:  3,400 mm to 4,500 mm, depending on load and speed. * from 2,700 mm with a regulatory exemption procedure.
  • Lift in accordance with UNE EN 81-20/50 and UNE EN 81-70 regulations for buildings which are public places.
